Overview

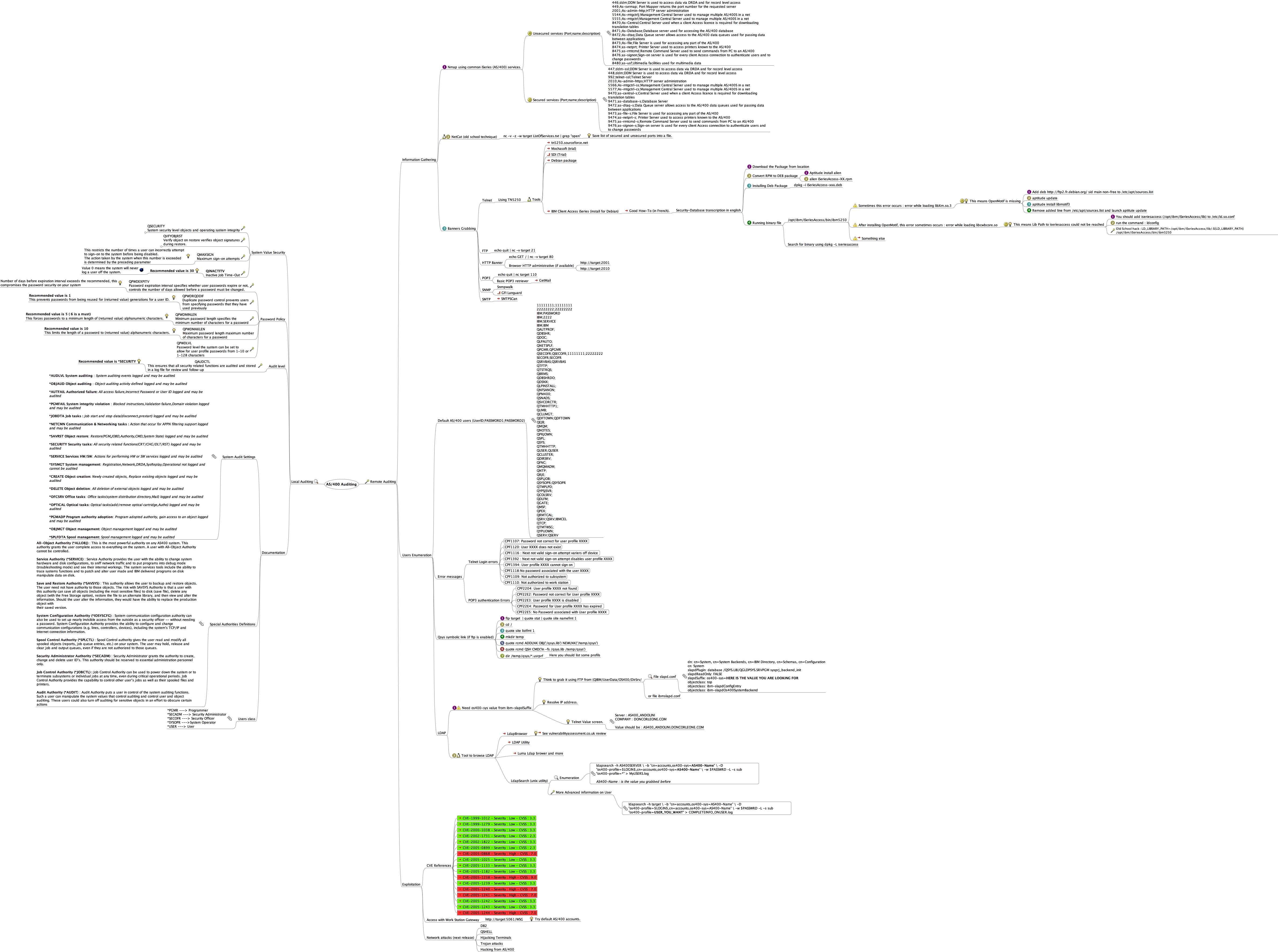

MindMap
Ports Scanning
Common non-secure
| Service Name | Description | Port Number |
|---|---|---|
| ddm | DDM server is used to access data via DRDA and for record level access. | 446 |
| As-svrmap | Port mapper returns the port number for the requested server. | 449 |
| As-admin-http | HTTP server administration | 2001 |
| As-mtgctrlj | Management Central server is used to manage multiple AS/400s in a network. | 5544 |
| As-mtgctrl | Management Central server is used to manage multiple AS/400s in a network | 5555 |
| As-central | Central server is used when a Client Access license is required and for downloading translation tables. | 8470 |
| As-database | Database server is used for accessing the AS/400 database. | 8471 |
| As-dtaq | Data Queue server allows access to the AS/400 data queues, used for passing data between applications. | 8472 |
| As-file | File Server is used for accessing any part of the AS/400 file system | 8473 |
| as-netprt | Printer Server is used to access printers known to the AS/400. | 8474 |
| as-rmtcmd | Remote command server is used to send commands from a PC to an AS/400 and for program calls | 8475 |
| as-signon | Sign-on server is used for every Client Access connection to authenticate users and to change passwords. | 8476 |
| as-usf | Ultimedia facilities are used for multimedia data. | 8480 |
Common secure (SSL)
| Service name | Description | Port Number |
|---|---|---|
| ddm-ssl | DDM server is used to access data via DRDA and for record level access. | 447, 448 |
| telnet-ssl | Telnet server. | 992 |
| as-admin-https | HTTP server administration. | 2010 |
| as-mgtctrl-ss | Management Central server is used to manage multiple AS/400s in a network. | 5566 |
| as-mgtctrl-cs | Management Central server is used to manage multiple AS/400s in a network. | 5577 |
| as-central-s | Central server is used when a Client Access license is required and for downloading translation tables. | 9470 |
| as-database-s | Database server is used for accessing the AS/400 database. | 9471 |
| as-dtaq-s | Data Queue server allows access to the AS/400 data queues, used for passing data between applications. | 9472 |
| as-file-s | File Server is used for accessing any part of the AS/400 file system. | 9473 |
| as-netptr-s | Printer Server is used to access printers known to the AS/400. | 9474 |
| as-rmtcmd-s | Remote command server is used to send commands from a PC to an AS/400 and for program calls. | 9475 |
| As-signon-s | Sign-on server is used for every Client Access connection to authenticate users and to change passwords. | 9476 |
Scanning
nc -v -z -w 1 as400.victim.com 1-100 | grep "open"Configuration
Retrieve all configuration
# General infos
WRKSYSVAL SYSVAL(*ALL) OUTPUT(*PRINT)
# Security infos
WRKSYSVAL SYSVAL(*SEC) OUTPUT(*PRINT)
# Retrieve *PUBLIC Rights
PRTPUBAUT OBJTYPE(*USRPRF)
# Retrieve all rights on accounts
PRTPVTAUT OBJTYPE(*USRPRF)
# Audit one account
DSPUSRPRF USRPRF(LOGIN) OUTPUT(*OUTFILE) OUTFILE(COGICEO/TEST)
# Take the file : right click > export > file
# Trivial passwords ?
ANZDFTPWD
# Last passwords change
PRTUSRPRF TYPE(*PWDINFO) SELECT(*SPCAUT) SPCAUT(*ALL)
# High privileges accounts - sort by privileges
PRTUSRPRF TYPE(*AUTINFO) SELECT(*SPCAUT) SPCAUT(*SECADM)
PRTUSRPRF TYPE(*AUTINFO) SELECT(*SPCAUT) SPCAUT(*ALLOBJ)
PRTUSRPRF TYPE(*AUTINFO) SELECT(*SPCAUT) SPCAUT(*JOBCTL)
# High privileges accounts - sort by classes
PRTUSRPRF TYPE(*AUTINFO) SELECT(*USRCLS) USRCLS(*SYSOPR)
PRTUSRPRF TYPE(*AUTINFO) SELECT(*USRCLS) USRCLS(*PGMR)
PRTUSRPRF TYPE(*AUTINFO) SELECT(*USRCLS) USRCLS(*SECADM)
PRTUSRPRF TYPE(*AUTINFO) SELECT(*USRCLS) USRCLS(*SECOFR)
Users Passwords
rexec -d -l LOGIN -p PASSWORD -b IP "ANZDFTPWD ACTION(*NONE)"Retrieve libraries
rexec -l LOGIN -p PASSWORD -b IP "QSH CMD('ls /qsys.lib/')" | strings | grep -E '*.LIB$' | awk -F"." '{print $1}' > lib
How to get & crack AS/400 hashes?
Access to an AS/400 server with *ALLOBJ and *SECADM privileges
Depending on the current setting of the QPWDLVL system value, password hashes are stored in different formats on the AS/400:
- QPWDLVL 0: IBM DES hashes (supported by JtR with our ‘as400-des’ format plugin) LM hashes (supported by default by JtR) SHA1 uppercase hashes (supported by JtR with our ‘as400-ssha1’ format plugin)
- QPWDLVL 1: IBM DES hashes (supported by JtR with our ‘as400-des’ plugin) SHA1 uppercase hashes (supported by JtR with our ‘as400-ssha1’ plugin)
- QPWDLVL 2: IBM DES hashes* (supported by JtR with our ‘as400-des’ plugin) LM hashes** (supported by default by JtR) SHA1 uppercase hashes*** (supported by JtR with our ‘as400-ssha1’ plugin) SHA1 mixed case hashes (supported by JtR with our ‘as400-ssha1’ plugin)
- QPWDLVL 3: SHA1 uppercase hashes*** (supported by JtR with our ‘as400-ssha1’ plugin) SHA1 mixed case hashes (supported by JtR with our ‘as400-ssha1’ plugin)
- Only if QPWDMAXLEN ⇐10
- Only if QPWDMAXLEN ⇐14
- Depending on password policy configuration
PREREQUISITES
- The latest version of IBMiScanner (part of hack400tool), available on https://github.com/hackthelegacy/hack400tool
- The latest john the ripper jumbo release, including ‘as400-des’ and ‘as400-ssha1’ plugins.
LM hashes
- Open IBMiScanner tool
- Connect
- From the list of available scans, select option 26: ‘SECURITY: Get John the Ripper hashes (LM hash)’
- In the output directory, a file named ‘lmhashes.txt’ will be created.
- Copy the file to your John the Ripper ‘run’ directory
- Run john the ripper: john —format=LM {filename}
- Enjoy the passwords :)
DES hashes
- Open IBMiScanner tool
- Connect
- From the list of available scans, select option 29: ‘SECURITY: Get John the Ripper hashes (DES)’
- In the output directory, a file named ‘DES-hashes.txt’ will be created.
- Copy the file to your John the Ripper ‘run’ directory
- Run john the ripper: john —format=as400-des {filename}
- Enjoy the passwords :)
SHA-1 hashes
(Please note that this method is generic for both mixed and upper case)
- Open IBMiScanner tool
- Connect
- From the list of available scans, select option 27: ‘SECURITY: Get John the Ripper hashes (SHA-1 hash uppercase)’ for uppercase hashes.
- For mixed case hashes, you can choose for option 28: ‘SECURITY: Get John the Ripper hashes SHA-1 hash mixed case)’ respectively.
- In the output directory, a file named ‘SHA-uc-hashes.txt’ for uppercase hashes or ‘SHA-mc-hashes.txt’ for mixed case hashes will be created.
- Copy the file to your John the Ripper ‘run’ directory
- Run john the ripper: john —format=as400-ssha1 {filename}
- Enjoy the passwords :)
Note: In case you used an older version of the IBMiscanner tool that outputs hashes in the format userid:hash, you can use the ibmiscanner2john.py script to convert the file into a format that can be processed by JtR
Pentest
Tools
git clone https://github.com/hackthelegacy/hack400tool- IBM System i Access V6R1_64
- IBM System i Access V5R1 32b
- Reflexion Client TN5250
