Basics

Oracle APEX is a low-code development platform used for building and deploying web applications. It integrates seamlessly with the Oracle Database, providing tools to quickly create data-driven applications using PL/SQL, along with other web technologies such as HTML, CSS, and JavaScript.

Security Overview

Oracle APEX offers built-in security features to protect against common web vulnerabilities like SQL Injection and Cross-Site Scripting (XSS). However, the security of applications built with APEX depends heavily on:

  • Proper input validation.
  • Access control measures.
  • Regular updates and patches.

APEX URL Syntax

APEX URLs follow a specific syntax to define the application, page, session, and other parameters:

Application ID:Page ID:Session ID:Request:Debug:Clear Cache:Item Names:Item Values:Printer Friendly

Example APEX URL:

  • Refers to Page 1 of Application 100:
  http://localhost/apex/f?p=100:1:12432087235079

Interesting Endpoints

  • Admin Interface:
    • http://hostname:port/apex/apex_admin
    • http://hostname:port/pls/apex/apex_admin
  • Application Builder:
    • http://hostname/ords/<workspace_name>/builder

Information Leak

APEX applications may expose certain details in source code or HTTP responses, such as:

  • APEX_VERSION
  • application-version
  • apex-version

Testing for Insecure Direct Object References (IDOR)

Insecure Direct Object References (IDOR) vulnerabilities allow unauthorized access to sensitive resources by manipulating identifiers in the URL.

Identifying Application ID and Page ID

An example URL format is:

https://my.app.com/apex/f?p=x:y:SESSION:::::ITEM:ITEM_VALUE
  • x = Application ID
  • y = Page ID

Using Burp Suite for IDOR Testing

  1. Capture a request with Burp Proxy and send it to Intruder.
  2. Set your payload position on the pageID parameter.
  3. Under Payloads, choose the “Numbers” payload and set an appropriate range for testing.
  4. Run the attack and observe for unauthorized access.

Testing for SQL Injection (SQLi)

Oracle APEX may be vulnerable to SQL Injection. To test for such vulnerabilities, tools like sqlmap can be used.

Using sqlmap for SQLi Testing

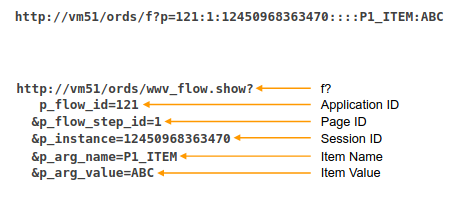

  • APEX-specific SQL Injection: To exploit vulnerabilities, you can rewrite the URL using wwv_flow.show:
sqlmap -u "https://app.oracle.com/ords/wwv_flow.show?p_flow_id=112&p_flow_step_id=5&p_instance=14720048029141&p_arg_name=RP,45&p_arg_value=F_DISPLAY" --batch --dbms Oracle --level 3 --risk 3
  • Explanation:
    • -u: Specifies the target URL.
    • --batch: Non-interactive mode; assumes “yes” to all questions.
    • --dbms Oracle: Specifies the target DBMS is Oracle.
    • --level 3: Sets the testing intensity level.
    • --risk 3: Sets the risk level for payloads.
